Husky e-Series Pumps 1050e Applications
1050e: Roll Coating
Roll Coating Applications
• Transfer of paint or coating material to roll coating tough during the application process
Current Pumps Used
• Progressive Cavity
– Expensive to repair and rotor/stator wear out very quickly with abrasive paint or coating material
• Air Operated Diaphragm
– Low pulsation is desired for process to prevent splashing in roll coating trough
– Air driven pumps are more expensive to operate
Success Story: Roll Coating
A large multi-national building material supply company trialed and approved the 1050e for their roll coating process. They replaced Sandpiper HDF2 pumps that were operating very slow.
Key Benefits
• Reduced energy consumption
• Improved pump life
• Low pulsation
• Digital flow setting
Curtain and Fan Coating
Applications
• Transfer of paint or coating material to curtain applicator or fan (spray nozzles) during the application process
• Transfer of food coating materials
– Glazes, oils, sauces, etc.
Current Pumps Used
• Progressive Cavity
– Expensive to repair and rotor/stator wear out very quickly with abrasive paint or coating material
• Air Operated Diaphragm
– Low pulsation is desired for process to prevent splashing in roll coating trough
– Air driven pumps are more expensive to operate
• Centrifugal
– Run dry, stalling, and abrasive issues
Ceramic Finishing
• Paint supply to spray applicator in low pressure applications
• Applying the finish material for ceramic components
Current Pumps Used
• Progressive Cavity
– Expensive to repair and rotor/stator wear out very quickly with abrasive paint or coating material
• Air Operated Diaphragm
– Low pulsation is desired for process to prevent splashing in roll coating trough
– Air driven pumps are more expensive to operate
• Centrifugal
– Run dry, stalling, and abrasive issues
1050e: Sump Evacuation
Sump Applications
• Transfer of sump and collection tanks
• Many in chemical facilities where rain and run-off must be collected and treated prior to returning to the water supply
• Remote applications where air is not always available
• Tie into automated level sensor to turn pump on/off
Current Pumps Used
• Air operated diaphragm
– Requires large air source where pump is being used to operate
• Centrifugal
– Do not have good suction lift
– Additional installation requirements involved to keep inlet flooded
1040e and 1050e: Breweries
Brewery Applica5ons
• Live yeast transfer
– Improved yeast quality over pressure pots
• Spent yeast transfer
• Water treatment
– Slurries
– Chemicals
• Diatomaceous earth transfer for filtering
Current Pumps Used
• Peristalic
– Can be large and expensive for the yeast, diatomaceous earth, and water treatment slurry transfer applications
• Rotary Lobe
– 1050e offers plug and play ability with the added benefit of run dry protection, line blockage prevention, and reduce cost on wear items
• Air Operated Diaphragm
– 1050e reduces operation and installation costs
1040e and 1050e: Wine
Winery Applications
• Barrel filling
– Filling barrels from wine vat with hose and filling nozzle
• Barrel top-off
– Topping off barrels during the aging process
• Filter media
– Diatomaceous earth
• Water treatment
– Slurries
– Chemicals
• Diatomaceous earth transfer for filtering
Current Pumps Used
• Peristaltic
– Can be large and expensive for the yeast, diatomaceous earth, and water treatment slurry transfer applications
• Rotary Lobe
– Can shear and damage the wine
– Some say this will alter the flavor of the wine
• Air Operated Diaphragm
– 1050e reduces operation and installation costs
– Gentle on wine product during pumping
1040e and 1050e: Distilleries
Dis5llery Applica5ons
• Pumping mash
– Transfer of mash product during the alcohol manufacturing process
• Filter media
– Diatomaceous earth
• Water treatment
– Slurries
– Chemicals
Current Pumps Used
• Centrifugal
– Don’t handle thick and viscous mash material very well
• Rotary Lobe
– 1050e offers plug and play ability with the added benefit of run dry protection, line blockage prevention, and reduce cost on wear items
• Progressive Cavity
– Can be large for high flow rates decreasing portability
– Can’t run dry and expensive to repair
1050e: Plating
Plating Applications
• Transferring abrasive materials for Plating operations
• Moving plating slurry to filter presses and removing sludge
• Transferring corrosive acids and bases used in metal plating
• Metering corrosive chemicals to adjust process water pH
Current Pumps Used
• Peristaltic
– Expensive for large sizes
– Hose life poor compared to diaphragms
• Air operated diaphragm
– Expensive to operate in continuous duty applications
1040e and 1050e: Tank and Tote Filling
Applications
• Filling of tanks and totes for general industrial applications
• Moving plating slurry to filter presses and removing sludge
• Transferring corrosive acids and bases used in metal plating
• Metering corrosive chemicals to adjust process water pH
Current Pumps Used
• Air operated diaphragm
– Expensive to operate in continuous duty applications
• Centrifugal
– Unable to stall against pressure when valve or nozzle used to stop flow
– Cannot run dry if supply is empty
• Rotary Lobe
– Unable to stall against pressure when valve or
nozzle used to stop flow
– Cannot run dry if supply is empty
1040e and 1050e: Blending and Batching
Applications
• Chemical Blends
• Batching of different chemicals at a specific volume into a tank to create a chemical blend
• Sanitary Ingredients
• Batching of different ingredients into a mixing kettle for blending within the production process
Current Pumps Used
• Centrifugal
– Unable to stall against pressure
– Does not have batch output
• Rotary Lobe
– Unable to stall against pressure
– Does not have batch output
• Air operated diaphragm
– Expensive to operate in continuous duty applications
1050e: Water Treatment
Applications
• Transfer and metering of lime slurry for water treatment applications
• Transfer of waste water in smaller applications.
Current Pumps Used
• Peristaltic
– Expensive for large sizes
– Hose life poor compared to diaphragms
• Air operated diaphragm
– Expensive to operate in continuous duty applications
• Centrifugal
– Unable to stall against pressure when valve or nozzle used to stop flow
– Cannot run dry if supply is empty
• Rotary Lobe
– Unable to stall against pressure when valve or nozzle used to stop flow

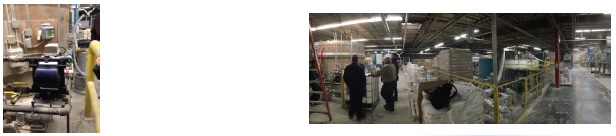

Success Story: Water Treatment
Industrial customer was using two large peristaltic pumps for lime slurry application in water
treatment application. They were having to repair pumps every 4 to 6 weeks.
Key Benefits
• One 1050e replace 2 peristaltic pumps
• Time between repair increased to 12 months+ from 6 weeks
• Price of pump was less than large peristaltic
1050e: Latex Supply Pump
Latex Supply Applications
• Transferring latex material on production line for various manufacturing processes
– Filling tubes for building materials
– Supply for latex glove manufacturing
Current Pumps Used
• Peristaltic
– Expensive for large sizes
– Hose life poor compared to diaphragms
• Air operated diaphragm
– Expensive to operate in continuous duty applications
• Centrifugal
– Can froth material
– Not able to stall under pressure
Grey Water Applications
• Emptying septic tanks on rail cars at rail service stations.
• Emptying grey water tanks on marine vessels when they come into port
Current Pumps Used
• Peristaltic
– Expensive for large sizes
– Hose life poor compared to diaphragms
• Centrifugal
– Not self priming to pull water from tanks
– Clog very easily when pumping out water with potential contaminants in it
